Engine Stops on left hand turns

- - - - - Spec Spec Miata Issues

  • Please log in to reply
23 replies to this topic

#1
super B

super B

    Junior Member

  • Members
  • Pip
  • 3 posts
  • Location:Seminole Florida
  • Region:South

My SM race car has an issue with left hand turns, the engine quits on hard left turns for about 4 seconds then picks back up and runs fine.I have been racing the car for five years with no issues other than oil, gas , and brakes. I pulled the fuel pump and found only the filter needed to be changed. no broken baffles in the tank. plenty of gas 1/2 tank.No problems with right turns.I suspect the switch that turns off the fuel pump when and if the car turns upside down..That being said questions are;.Where is is located, what does it look like, can it be bypassed, is this a common issue? I bought the car used and did not build it. Thanks, Brian Ward.



#2
Ron Alan

Ron Alan

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 3,218 posts
  • Location:Northern CA
  • Region:West Coast
  • Car Year:1995
  • Car Number:40

Had the same issue with 2 different cars. On the 1.6 it was in the harness right around the steering column...loosing fuel pump power.



In the 99 it was the fuel pump UNIT...would start with a small miss/stumble around 1/2 a tank in a long/sustained left hand high g corner...would get worse as the fuel load got closer to empty. Changed the whole assembly...been gone ever since!


Ron

RAmotorsports

2014 NASA SM Western States Champion(Car owner)

2015 NASA 25HR E3 Champion(Car owner)

2016 NASA 25HR E3 Champion(Car owner)

2017 NASA NORCAL SM Series Director

Donor - Made PayPal donation Bona fide - A bonafide Spec Miata driver

#3
shedguy

shedguy

    Junior Member

  • Members
  • Pip
  • 9 posts
  • Location:Florida
  • Region:CFR
  • Car Year:1996
  • Car Number:153

Hey Brian I had the same problem in my 96. Changed the fuel pump and screen and the problem went away. Car would run fine with a full tank and start cutting out below a 1/2. Hope that's your problem its an easy fix.



#4
Danica Davison

Danica Davison

    Always the bridesmaid never the bride

  • Members
  • PipPipPipPipPip
  • 804 posts
  • Location:Jacksonville Biatch
  • Region:Central Florida
  • Car Year:1999
  • Car Number:10

When the car shuts off, does your tach go to zero? Or does it just gradually fall like it would if you are off the throttle?



Someone needs to confirm with this to make sure I have it correctly, but it is to my understanding that if the tach shuts off and goes to zero .. it is most likely an electrical issue.  And if it gradually falls like it would if you were coasting, it is most likely a fuel pump issue.


John Davison
Autotechnik Racing / 5x Racing
2016 - Central Florida Region Champion
2017 - The People's Champion
2017 - President of DSFC
#itcouldbeyou

Series Champ - Won a points based series in a Spec Miata Chatterbox - Blah blah blah... Blah blah blah Instigator - Made a topic or post that inspired other We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver

#5
Ron Alan

Ron Alan

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 3,218 posts
  • Location:Northern CA
  • Region:West Coast
  • Car Year:1995
  • Car Number:40

^^^The reality is many things could cause the OP symptoms. In my 1.6 issue...the AFR jumped up to 22+ indicating loss of fuel...but it was an electrical issue in the FP B+ wire! So an electrical issue...but wasn't a whole car issue so no loss of tach or anything else.



IN another car of mine...was having a stumble between 6-7000rpm that was very intermittent(from nothing in the morning sessions to 2 small pops in a session to full missing a whole session)and shot gunning parts wasn't working! Finally installed an AFR hoping this would give me some insight! Sure enough...when the car would miss the AFR dropped indicating a fat mixture so was losing spark not fuel. Finally cut off and replaced the cam sensor plug(95 car)and it would seem so far this has solve the issue!



The theory in my 99 low fuel left hand turn stumble was a cracked pipe on the FP assemble that would suck air...I never confirmed this but had someone else tell me that is what they found on theirs with the same symptoms. All I know is replacing the whole FP assembly solved the problem!


  • Danica Davison likes this

Ron

RAmotorsports

2014 NASA SM Western States Champion(Car owner)

2015 NASA 25HR E3 Champion(Car owner)

2016 NASA 25HR E3 Champion(Car owner)

2017 NASA NORCAL SM Series Director

Donor - Made PayPal donation Bona fide - A bonafide Spec Miata driver

#6
super B

super B

    Junior Member

  • Members
  • Pip
  • 3 posts
  • Location:Seminole Florida
  • Region:South

My tack stays up and running approx 5500 rpm as I can recall... it for sure does not drop to zero. Only sweeping left high g turns. IE. the carousel turn at Sebring. it does not stumble or give any sign its going to quit. just 2 or so seconds into the turn, its like you lifted off the gas.. For sure I am going to change the fuel pump .Thanks Brian



#7
Steve Scheifler

Steve Scheifler

    member

  • Members
  • PipPipPipPipPip
  • 1,343 posts
  • Location:St. Louis
Same symptoms on a 1.6 awhile back, happening From 1/2 tank and below. Fuel pump did not seem to make sense but a couple people told me to forget logic and just replace it. It worked.
Bona fide - A bonafide Spec Miata driver

#8
Danica Davison

Danica Davison

    Always the bridesmaid never the bride

  • Members
  • PipPipPipPipPip
  • 804 posts
  • Location:Jacksonville Biatch
  • Region:Central Florida
  • Car Year:1999
  • Car Number:10

My tack stays up and running approx 5500 rpm as I can recall... it for sure does not drop to zero. Only sweeping left high g turns. IE. the carousel turn at Sebring. it does not stumble or give any sign its going to quit. just 2 or so seconds into the turn, its like you lifted off the gas.. For sure I am going to change the fuel pump .Thanks Brian



Yeah, I would replace the entire fuel pump and tree. I had the same issue with my old 1.6 once, it would cut out in the carousel at sebring and T6 at Daytona when it dropped below half a tank.  That worked for me


John Davison
Autotechnik Racing / 5x Racing
2016 - Central Florida Region Champion
2017 - The People's Champion
2017 - President of DSFC
#itcouldbeyou

Series Champ - Won a points based series in a Spec Miata Chatterbox - Blah blah blah... Blah blah blah Instigator - Made a topic or post that inspired other We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver

#9
Danny Steyn

Danny Steyn

    Zulu rain warrior

  • SMembers
  • PipPipPipPipPip
  • 2,168 posts
  • Location:Fort Lauderdale
  • Region:FL
  • Car Year:1999
  • Car Number:39

Do you have a fuel pressure gauge that is mapped to your data? If so you will immediately see the pressure drop if it is fuel related. If you do not map directly to a data system, can you see it in your video? Once again this will help you detect immediately if it is fuel related.


Danny
Danny Steyn Racing | DSR YouTube Channel
Danny Steyn Photography | Adept Studios | OPM AutosportsRossini Racing Engines | G-Loc | Traqmate | Traqgear

2016 June Sprints WInner, ARRC Winner, NASA Eastern States Championships Podium

2015 Eastern Conference Majors Champ, June Sprints Winner, ARRC Winner

2014 NASA Eastern States Championship Runner Up.

2013 SEDiv Driver of the Year, Eastern Conference Majors Champ, SEDiv National Champ, ARRC Winner, Runoffs Podium

2011 SEDiv Driver of the Year, SEDiv National Champ, ARRC Winner, Palm Tree Quad National Champ, SEDiv ECR Champ
2010 June Sprints Winner, ARRC Winner

2009 SARRC Champ, SEDiv ECR Champ, FES Champ
2008 SEDiv ECR Champ

June Sprints winner  - June Sprints winner Series Champ - Won a points based series in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver June Sprints winner  - June Sprints winner ARRC Champion - Won the ARRC Race in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata Majors Winner - BFG Supertour Winner -

#10
MPR22

MPR22

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 1,855 posts
  • Location:Houston
  • Region:Southwest
  • Car Year:1999
  • Car Number:22

Could be the dreaded broken baffle in the tank.



Could be the ecu resetting.  I would think that would kill that tach though.


Majors Winner - Novel Approach - When a paragraph simply won't do... We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver Donor - Made PayPal donation

#11
SaulSpeedwell

SaulSpeedwell

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 699 posts
  • Location:NEOhio

Didn't read whole thread.  In-dash or data-logged fuel pressure gauge is the most underrated gauge of all time for SM and every other car, if you ask me, especially compared to the fancy but usually misleading on-board AFR gauge.



For less than the cost of one wheel bearing, or one German Hoosier, or 0.002 the cost of your competitor's CoalMAX DuallyStroke Supreme Brougham Landau King Ranch Boss Hogg Harley Davidson Denali Edition tow vehicle, you would know for damn sure whether the miss/stumble was fuel pressure or something else. :)


  • Mike Collins, Mark McCallister, Danny Steyn and 2 others like this

For faster reply than PM:  miataboxes>>>AT<<<gmail>>DOT<<<com


#12
Steve Scheifler

Steve Scheifler

    member

  • Members
  • PipPipPipPipPip
  • 1,343 posts
  • Location:St. Louis

I'm guessing I can count on a single lap of my fingers the number of SMs with fuel pressure being logged, and not that many more with a gauge on the dash.  Which I suppose is to say that I agree with Saul, even though I have not installed either in our cars.  But if I could have only one or the other, it would be the "fancy but usually misleading on-board AFR gauge". :)


Bona fide - A bonafide Spec Miata driver

#13
Danny Steyn

Danny Steyn

    Zulu rain warrior

  • SMembers
  • PipPipPipPipPip
  • 2,168 posts
  • Location:Fort Lauderdale
  • Region:FL
  • Car Year:1999
  • Car Number:39

Didn't read whole thread.  In-dash or data-logged fuel pressure gauge is the most underrated gauge of all time for SM and every other car, if you ask me, especially compared to the fancy but usually misleading on-board AFR gauge.



For less than the cost of one wheel bearing, or one German Hoosier, or 0.002 the cost of your competitor's CoalMAX DuallyStroke Supreme Brougham Landau King Ranch Boss Hogg Harley Davidson Denali Edition tow vehicle, you would know for damn sure whether the miss/stumble was fuel pressure or something else. :)

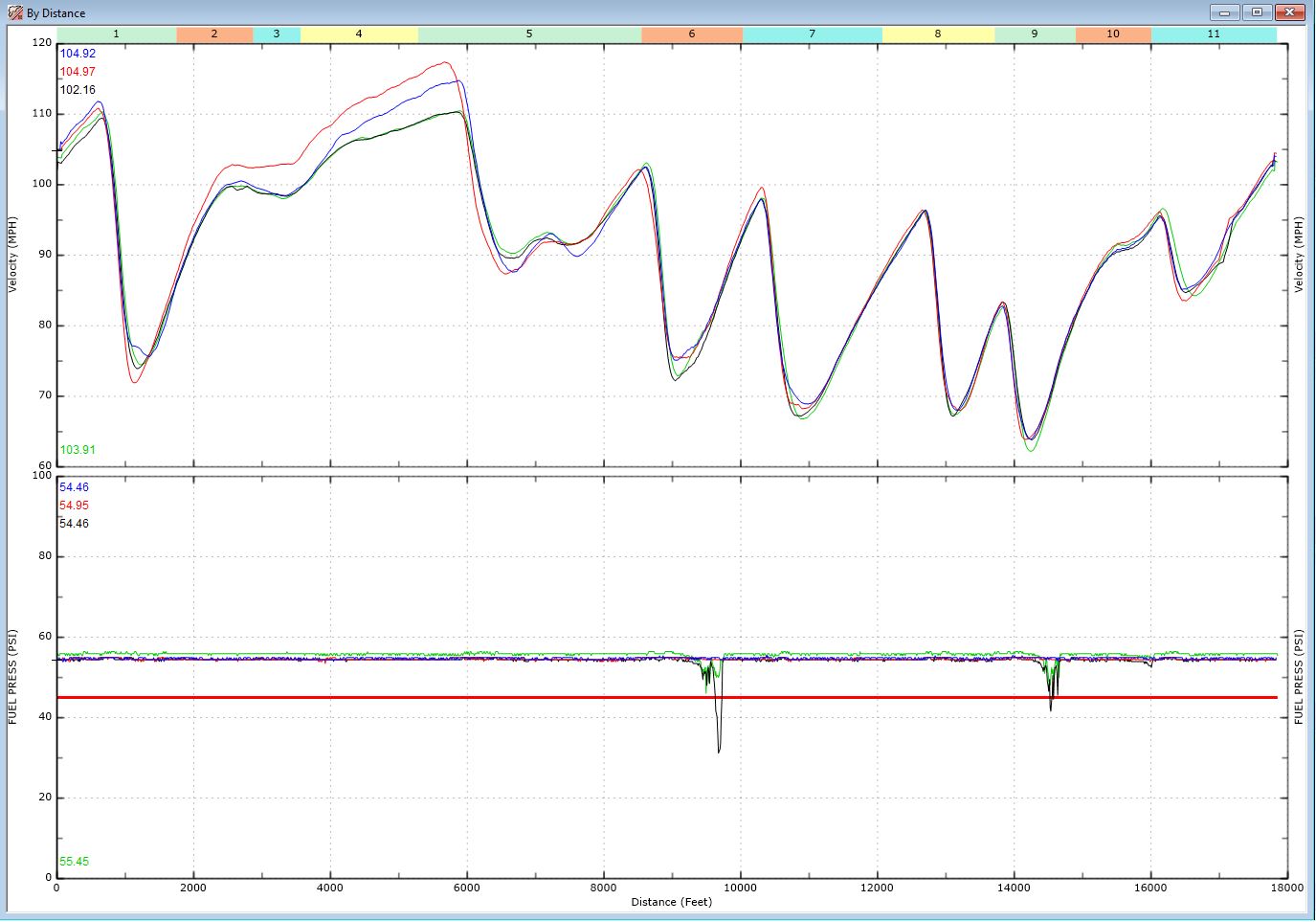

Could not agree with you more Saul!  At the recent Watkins Glen Hoosier Super Tour I actually did not feel or detect the fuel pressure stumble in the car. However in examining the data I was able to see it clearly, and brought it to Fowler's attention. We were fortunately able to change out the fuel pump before the main race and go on to stop the clock in Race 2.



Great believer in mapping the following to your in car data system (and always record the ambient conditions)

  • Fuel Pressure
  • AF Ratio
  • Water Temp
  • Throttle Position
  • Brake Pressure



  • dc2696 likes this

Danny
Danny Steyn Racing | DSR YouTube Channel
Danny Steyn Photography | Adept Studios | OPM AutosportsRossini Racing Engines | G-Loc | Traqmate | Traqgear

2016 June Sprints WInner, ARRC Winner, NASA Eastern States Championships Podium

2015 Eastern Conference Majors Champ, June Sprints Winner, ARRC Winner

2014 NASA Eastern States Championship Runner Up.

2013 SEDiv Driver of the Year, Eastern Conference Majors Champ, SEDiv National Champ, ARRC Winner, Runoffs Podium

2011 SEDiv Driver of the Year, SEDiv National Champ, ARRC Winner, Palm Tree Quad National Champ, SEDiv ECR Champ
2010 June Sprints Winner, ARRC Winner

2009 SARRC Champ, SEDiv ECR Champ, FES Champ
2008 SEDiv ECR Champ

June Sprints winner  - June Sprints winner Series Champ - Won a points based series in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver June Sprints winner  - June Sprints winner ARRC Champion - Won the ARRC Race in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata Majors Winner - BFG Supertour Winner -

#14
Marc Cefalo

Marc Cefalo

    Member

  • Members
  • PipPipPip
  • 128 posts
  • Location:Northeast Pa
  • Region:NEPA
  • Car Year:2002
  • Car Number:#00

don't forget where the fuel pressure sensor is for your data systems......most 99-05 cars I've seen have it right at the regulator.....which is NOT where you want it......


Marc Cefalo

www.planet-miata.com



570-262-1013 direct

#1 source for new and used Miata parts and accessories.

We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver

#15
38bfast

38bfast

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 830 posts
  • Location:Sterling Heights, MI
  • Region:OVR
  • Car Year:1999
  • Car Number:38

Danny from you plot I would not have replaced the pump. It looks like you were just running low on fuel.


Ralph Provitz
V2 Motorsports

#16
SaulSpeedwell

SaulSpeedwell

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 699 posts
  • Location:NEOhio

Danny from you plot I would not have replaced the pump. It looks like you were just running low on fuel.



When the check valve went bad on my '99 fuel pump, it would do similarly "instantaneous" fuel pressure drops with anything less than ....say ... 3 gallons in the tank?  Only in sharp left turns, IIRC.   There may have been other pump problems beyond the check valve, but the line pressure would definitely drop to <15psi pretty much as soon as you keyed off.  And the engine wouldn't fire back up until 10+ crank revolutions and the fuel pressure got back to high 30s psi.



I'd be curious what Danny's data said when the engine was keyed off.



This is the #1 viewed video on my notoriously amateur and terrible YouTube channel ... a whopping 3,401 views!  LOL




For faster reply than PM:  miataboxes>>>AT<<<gmail>>DOT<<<com


#17
Steve Scheifler

Steve Scheifler

    member

  • Members
  • PipPipPipPipPip
  • 1,343 posts
  • Location:St. Louis
Speaking of pump failures, I don't suppose anyone but Mark has spent much time tearing them down? Are they typically just getting weak, or failing entirely? If the galling is typical even on low mileage failures, might the problem be that they briefly run dry each time we pump the tank empty? Also, I've always assumed that in normal operation the fuel running through them provides adequate cooling, but I had an experience on the dyno recently that lead me to believe the pump might be overheating. Adding a few gallons cleared it up. I guess that when driving with low fuel there would be plenty of splashing to keep it wet, but perhaps a long dyno session on low fuel is a bad idea. Anyone else see any indications of that?
Bona fide - A bonafide Spec Miata driver

#18
38bfast

38bfast

    Veteran Member

  • Members
  • PipPipPipPipPip
  • 830 posts
  • Location:Sterling Heights, MI
  • Region:OVR
  • Car Year:1999
  • Car Number:38

We have seen lots of pumps go weak. At idle they have good pressure but as you run up the RPM range to red line you will see the pressure drop. We have seen some drop as much as 15PSi through the range. You will see it as well on the AF gauge. Another good reason to log fuel pressure. We have had customers that aren't logging AF or FP cook a perfectly good motor down due to a bad pump.



Looking at Dannys plot it appears that the fuel pressure spikes get worse lap after lap trending more towards a fuel starvation issue in the tank. Low fuel, broken off baffle, or return hose not pointed directly at the sock on the bottom of the fuel pump.


Ralph Provitz
V2 Motorsports

#19
Bench Racer

Bench Racer

    Different strokes for different folks : )

  • Members
  • PipPipPipPipPip
  • 4,560 posts
  • Location:Wauwatosa, WI
  • Region:Milwaukee
  • Car Year:1990
  • Car Number:14

Don't disagree with logging fuel pressure.

Why do so few use a visible (outside the windshield)  fuel pressure gauge with snubber?


Broken record - You are starting to sound like a broken record. Donor - Made PayPal donation Bona fide - A bonafide Spec Miata driver

#20
Danny Steyn

Danny Steyn

    Zulu rain warrior

  • SMembers
  • PipPipPipPipPip
  • 2,168 posts
  • Location:Fort Lauderdale
  • Region:FL
  • Car Year:1999
  • Car Number:39

Danny from you plot I would not have replaced the pump. It looks like you were just running low on fuel.



Ralph - no we were more than 50% at the time. We have had this occur twice now and replacing fuel pump cured it each time. Normally when a fule pump starts going bad, I feel the gas starvation, a hesitation, sluggish response, most often after a long loaded left hand turn  But as you can see from the data, the dip in fuel pressure did NOT coincide with any dip in engine performance.



The reason I showed the data trace is to demonstrate how useful logging these parameters are to help catching a situation early before it becomes a real issue.


Danny
Danny Steyn Racing | DSR YouTube Channel
Danny Steyn Photography | Adept Studios | OPM AutosportsRossini Racing Engines | G-Loc | Traqmate | Traqgear

2016 June Sprints WInner, ARRC Winner, NASA Eastern States Championships Podium

2015 Eastern Conference Majors Champ, June Sprints Winner, ARRC Winner

2014 NASA Eastern States Championship Runner Up.

2013 SEDiv Driver of the Year, Eastern Conference Majors Champ, SEDiv National Champ, ARRC Winner, Runoffs Podium

2011 SEDiv Driver of the Year, SEDiv National Champ, ARRC Winner, Palm Tree Quad National Champ, SEDiv ECR Champ
2010 June Sprints Winner, ARRC Winner

2009 SARRC Champ, SEDiv ECR Champ, FES Champ
2008 SEDiv ECR Champ

June Sprints winner  - June Sprints winner Series Champ - Won a points based series in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata We have a Winnah! - Won their 1st race... Congratulations! Bona fide - A bonafide Spec Miata driver June Sprints winner  - June Sprints winner ARRC Champion - Won the ARRC Race in a Spec Miata ARRC Champion - Won the ARRC Race in a Spec Miata Majors Winner - BFG Supertour Winner -
