Mazda Motorsports’ triple-pass Radiator for NB Miatas

- - - - -

  • Please log in to reply
2 replies to this topic

#1
Johnny D

Johnny D

    Veteran Member

  • Moderators
  • 6,113 posts
  • Location:Fremont, CA
  • Region:San Francisco
  • Car Year:1999
  • Car Number:88

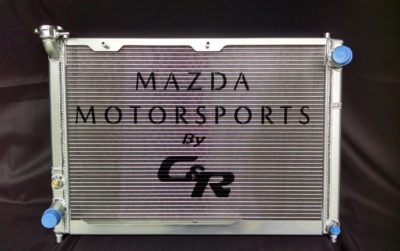

New triple-pass radiator from experts in cooling technology is a straight replacement for stock, and is Spec Miata approved



Part No.: 0000-01-5503-CR
Racer Price: $750.00



When a racer’s nose is six inches off the back bumper of the car in front in a five-car draft, airflow through the radiator is not optimal. Mazda Motorsports saw a need for a better performing radiator for Spec Miatas, in particular the 1999-2005 NB Miata. For this, Mazda Motorsports turned to C&R, which has long provided advanced cooling technology for NASCAR, IndyCar and IMSA sports car applications. The company is now a part of PWR, which has experience in F1 and rally as well. Consequently, C&R turned out to be the ideal partner for the development of a new NB Miata radiator that is not only approved for Spec Miata but will also work well for NB racers competing in other categories.



C&R didn’t just take an existing core and slap some mounts on it to make it fit. It was a research and development process that took the radiator from a single-pass design to a triple-pass design for optimal function in the Miata.



“A single-pass design typically has an inlet on one side and an outlet on the opposite side, and the coolant makes one pass through the entire core,” explains Phil Cook, part of C&R’s Sales and Tech Support Group. “For whatever reason, Miatas like a triple pass. In a triple pass, we actually put a baffle about six inches below the inlet so the coolant will pass through one third, then it goes back the other way, then there’s a baffle about six inches above the outlet, so there’s another pass, and then the last pass will be the bottom third of the radiator. The water actually goes three times through one-third of the core. It separates the radiator into three smaller radiators.



“This process allows heat to transfer in three different cycles instead of one large process. The duct work and nose openings are critical in these cars, and it happens that the last pass is at the lower area of the grill, where it gets the most airflow across that particular part of the radiator. That’s one of the big reasons a triple pass works so well in this particular application.”



The radiator uses C&R’s proprietary extruded tube race core and fin design and works with the stock fan – a Spec Miata requirement. It’s a direct replacement for the stock radiator, with no modifications required. It also incorporates a couple of other unique features.



“It may seem small, but we extended the top plate to help direct airflow. That’s something that’s not on the stock radiators. We also incorporated a zinc anode, which will help reduce the potential for corrosion. We suggest people run corrosion inhibitors, but the zinc anode will help as well,” says Cook.



The radiator is available now from Mazda Motorsports. Log on to the store or call (800) 435-2508 to order yours today.



https://www.mazdamot...-for-nb-miatas/


2011 NASA Western Endurance Racing Championship E3 Champ
We have a Winnah! - Won their 1st race... Congratulations! Beta-Tester - Assisted us with beta testing the website. Donor - Made PayPal donation Bona fide - A bonafide Spec Miata driver Novel Approach - When a paragraph simply won't do... Survive the 25, NASA Thunderhill - Survive the 25, NASA Thunderhill Instigator - Made a topic or post that inspired other Make it Rain - Made Paypal donation of $100+

#2
Jim Drago

Jim Drago

    East Street Racing / 2 Time National Champion

  • Administrators
  • 5,923 posts
  • Location:Memphis, Tn
  • Region:Mid South
  • Car Year:2005
  • Car Number:2
Hmm seems like a copy of this one that doesn't cool as well and costs $200 more and on the market 12 years later :) :)

https://mazdaracers....tors-1999-2005/

East Street Auto Parts
Jim@Eaststreet.com
800 700 9080

Hoosier Super Tour points Champion - Hoosier Super Tour points Champion ARRC Champion - Won the ARRC Race in a Spec Miata Series Champ - Won a points based series in a Spec Miata BFG Supertour Winner - Majors Winner - Circuit of the Americas Winner - We have a Winnah! - Won their 1st race... Congratulations! June Sprints winner  - June Sprints winner June Sprints winner  - June Sprints winner June Sprints winner  - June Sprints winner June Sprints winner  - June Sprints winner SCCA National Champion - Won SCCA Runoffs at Road America SCCA National Champion - Won SCCA Runoffs at Road America

#3
Bench Racer

Bench Racer

    Different strokes for different folks : )

  • Members
  • PipPipPipPipPip
  • 5,129 posts
  • Location:Wauwatosa, WI
  • Region:Milwaukee
  • Car Year:1990
  • Car Number:14

Like Mazda needs to be in the radiator business. Hey, the pig is fat lets harvest.


  • Jim Drago likes this
Broken record - You are starting to sound like a broken record. Donor - Made PayPal donation Bona fide - A bonafide Spec Miata driver
